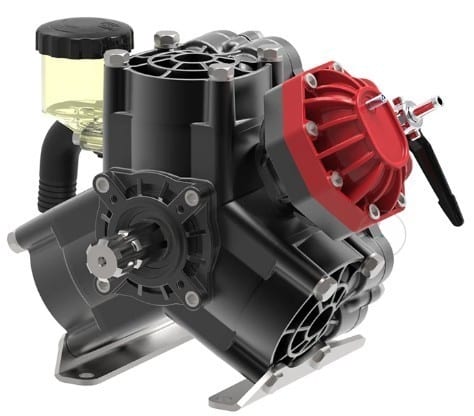

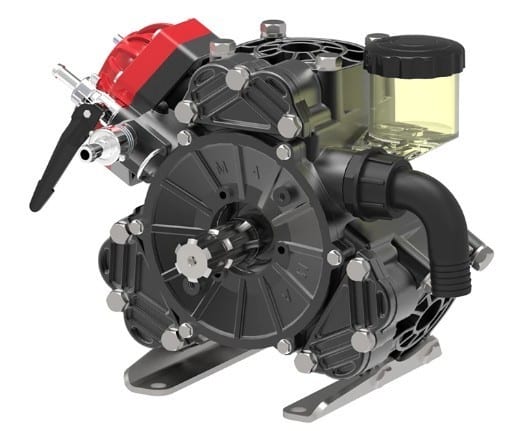

Three semi-hydraulic diaphragm pump, internal manifolds, all wetted parts are anodized anti-corrosion, optional control assembly
incorporated or remote.
70 l/1′ – 50 bar – 550 RPM
TECH SPECS
Speed: 550 RPM max
Pressure: 50 bar max
Capacity: 70 l/1′ max
Weight: 18 Kg

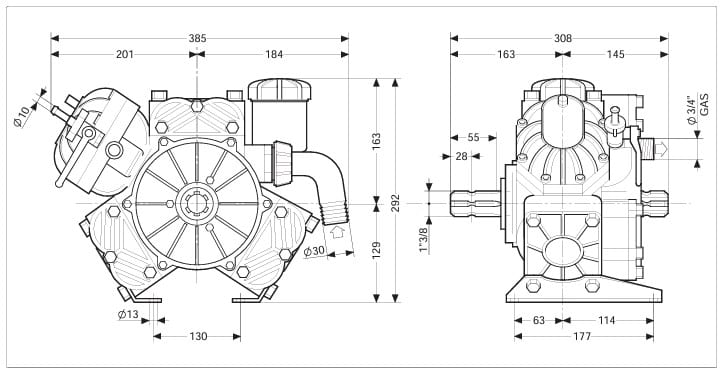

Dimensions: 385x308x292

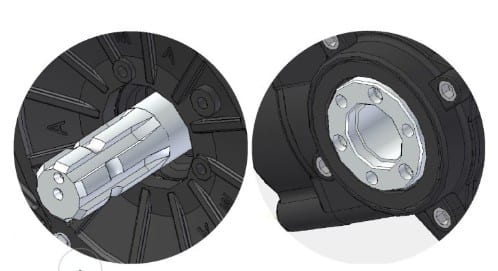

SHAFT OPTIONS
SINGLE SPLINE SHAFT 1⅜" x flange with 6 bolts
(Tractor Mount)
