Pump M50

Home › Products › Pump M50

Two semi-hydraulic diaphragms pump, internal manifolds, all wetted parts are anodized anti-corrosion, optional control assembly incorporated or remote.

50 l/1′ – 40 bar – 550 RPM

TECH SPECS

Speed: 550 RPM max

Pressure: 40 bar max

Capacity: 50 l/1′ max

Weight: 12 Kg

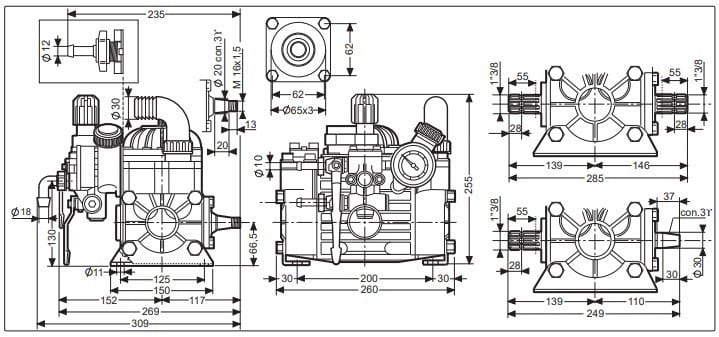

Dimensions: 260x309x255

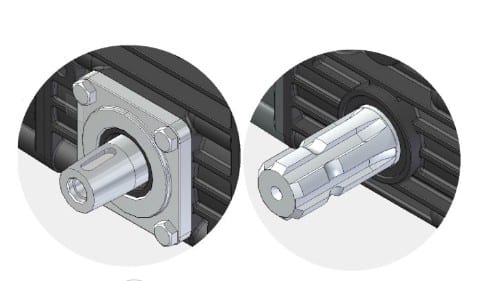

SHAFT OPTIONS

SINGLE CONICAL SHAFT Ø20
(Gearbox Application)

OR

SINGLE SPLINE SHAFT 1⅜"
(Tractor Mount)
