Pump M35

Home › Products › Pump M35

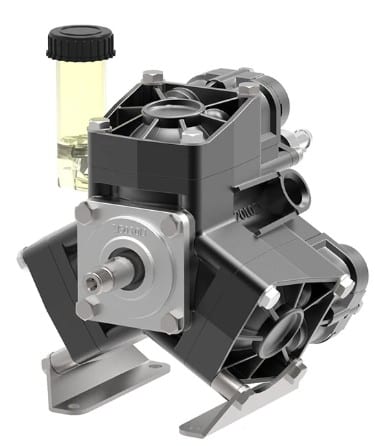

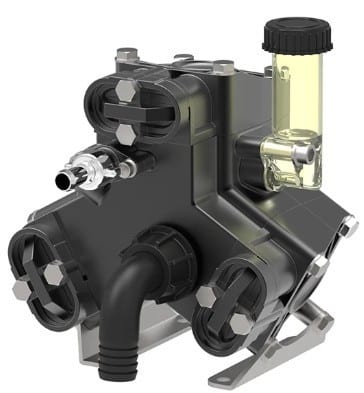

Three semi-hydraulic diaphragm pump, internal manifolds, all wetted parts are anodized anti-corrosion, control assembly incorporated or remote.

39 l/1′ – 40 bar – 700 RPM - Complete with control unit C11

TECH SPECS

Speed: 700 RPM max

Pressure: 40 bar max

Capacity: 39 l/1′ max

Weight: 6,8 Kg

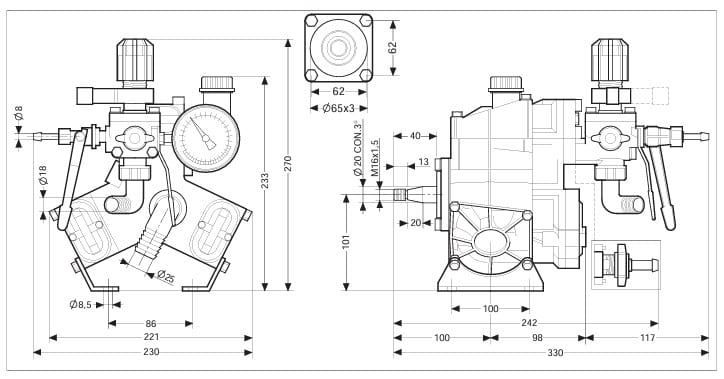

Dimensions: 230x330x270

SHAFT OPTIONS

SINGLE CONICAL SHAFT Ø20
(Gearbox Application)
