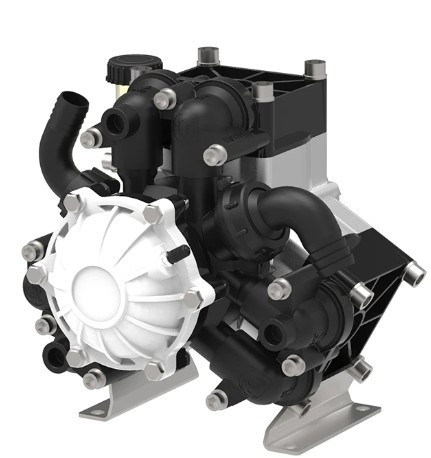

PUMP D123
OVERVIEW : Three diaphragms semi-hydraulic pump, external manifolds, all wetted parts are in corrosion resistant materials, plastic coated aluminium pump heads. Fitted for remote control only.
TECHNICAL DATA and PERFORMANCES
Speed: 550 RPM max
Pressure: 20 bar max
Capacity: 120 l/1′ max
Weight: 12,7 Kg
Dimensions: 336x330x290
SHAFT OPTION
Shaft M 1″3/8 splined
Suitable for installation to Tractor PTO
