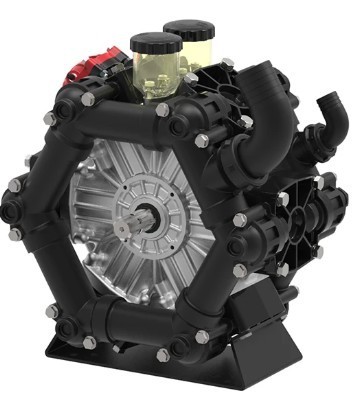

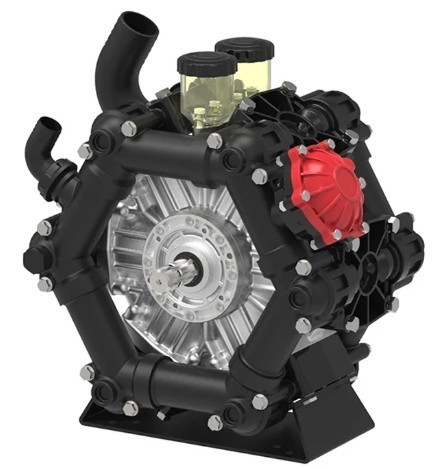

PUMP D406
OVERVIEW : Six diaphragms semi-hydraulic pump, external manifolds, control assembly remote only, all wetted parts are in corrosion resistant materials.
TECHNICAL DATA and PERFORMANCES
Speed: 550 RPM max
Pressure: 20 bar max
Capacity: 403 l/1′ max
Weight: 53,4 Kg
Dimensions: 522x357x533

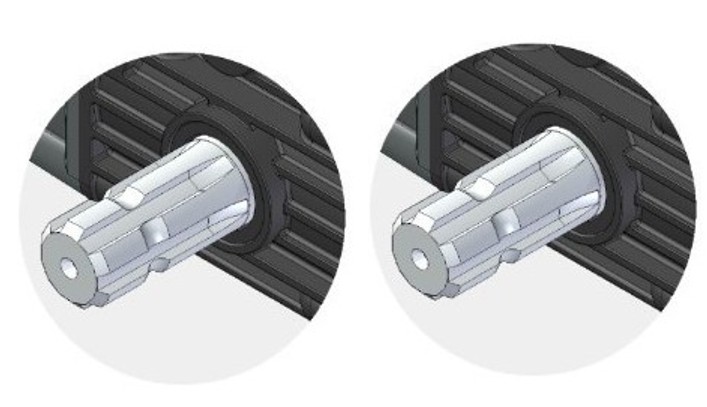

SHAFT OPTION 4
Through shaft 1⅜M-1⅜M splined.
Suitable for installation to Tractor PTO
